> AM Pedestals, M7420A

M7420A Acrylic Pedestal

  • One Master connected to two Slaves
  • Each Master and Slave can operate as Mono, Tx or Rx
  • Software tuning (remote network tuning, optional)
  • Power consumption: <90W
  • Transmit pulse duration: 1.6ms
  • Receiving frequency: 58KHz ( +/-200Hz)
  • Alarm dB: 95dB/10cm
  • Wide stable and consistent coverage

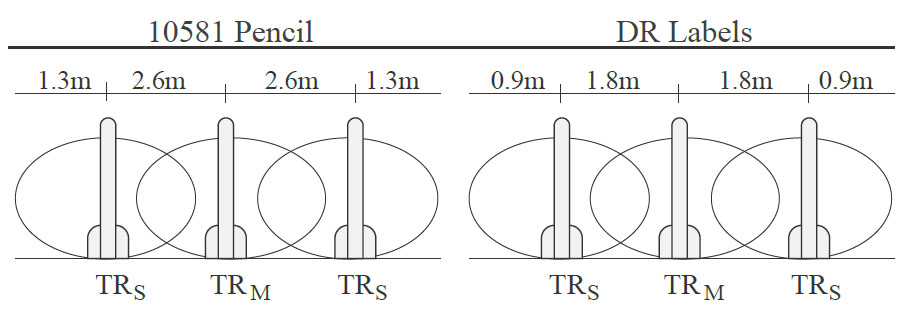

Detection Distance:

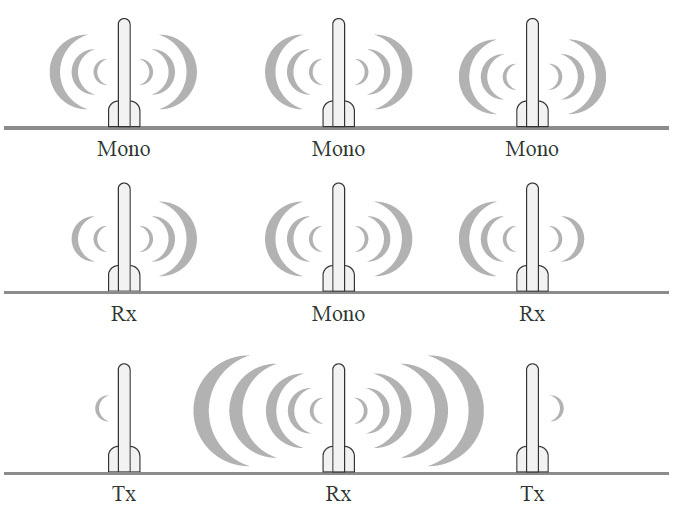

Pedestal Mode Diagram:


Dimension: 1530x400x115mm
Packing: 1pc./Ctn., G.W. 23.5kg

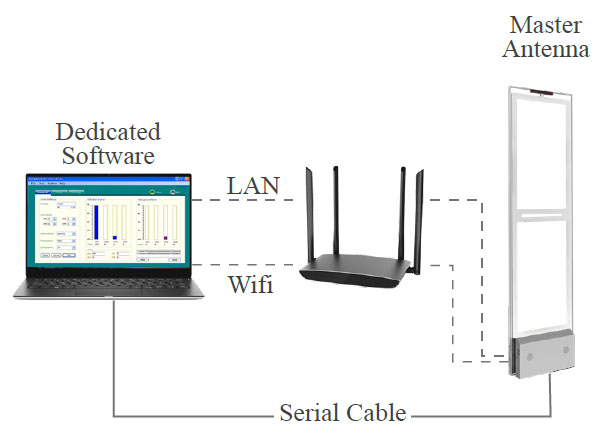

Wireless or Serial cable tuning:
