Environment
Operating temperature : 0~50℃
Storage temperature : -4~60℃
Relative humidity : 0~90% non-condensing
Power Supply
Primary Inputs : 100~120 VAC@60Hz or 200~240 VAC@50Hz
Primary Power Fuse : 2A, 250V
Maximum Current : 0.54A@120V and 0.27A@240v
Input power : <65W
The power line must be grounded.
Receiver
Input : 6
Operating frequency : 58KHz +/-200Hz
Buzzer, LED, CCTV

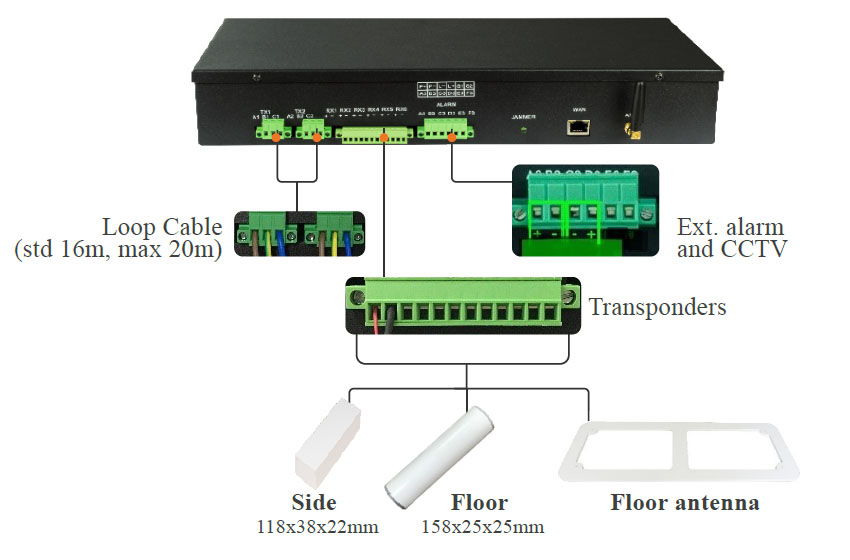

Output for connecting to external alarm, LED and CCTV
Configuration
Standerd 4 side transponders with optional floor transponders or floor antenna
Average detection:
Hard tag detection: 95%+
DR label detection: limited
