AM Floor System: M7000D

> Specifications

  • Environment
    Operating temperature : 0~40℃
    Storage temperature : -4~60℃
    Relative humidity : 0~90% non-condensing
  • Power Supply
    Primary Inputs : 100~120 VAC@60Hz or 200~240 VAC@50Hz
    Primary Power Fuse : 2A, 250V
    Maximum Current : 0.32A@120V and 0.16A@240v
    Input power : <38W
    The power line must be grounded.
  • Receiver
    Input : 2
    Operating frequency : 58KHz +/-200Hz
  • Alarm
    Two individual outputs for each floor antenna
  • Configuration
    Any combination of long and short floor antenna
    (maximum two floor antennae per controller)

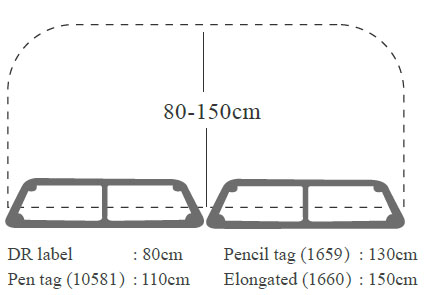

Average detection:

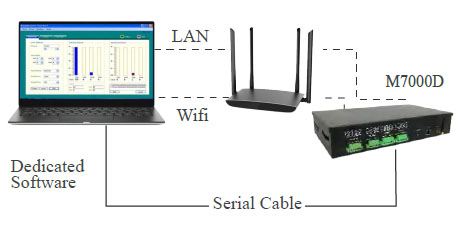

Wireless or Serial cable tuning:

M7000D-3
